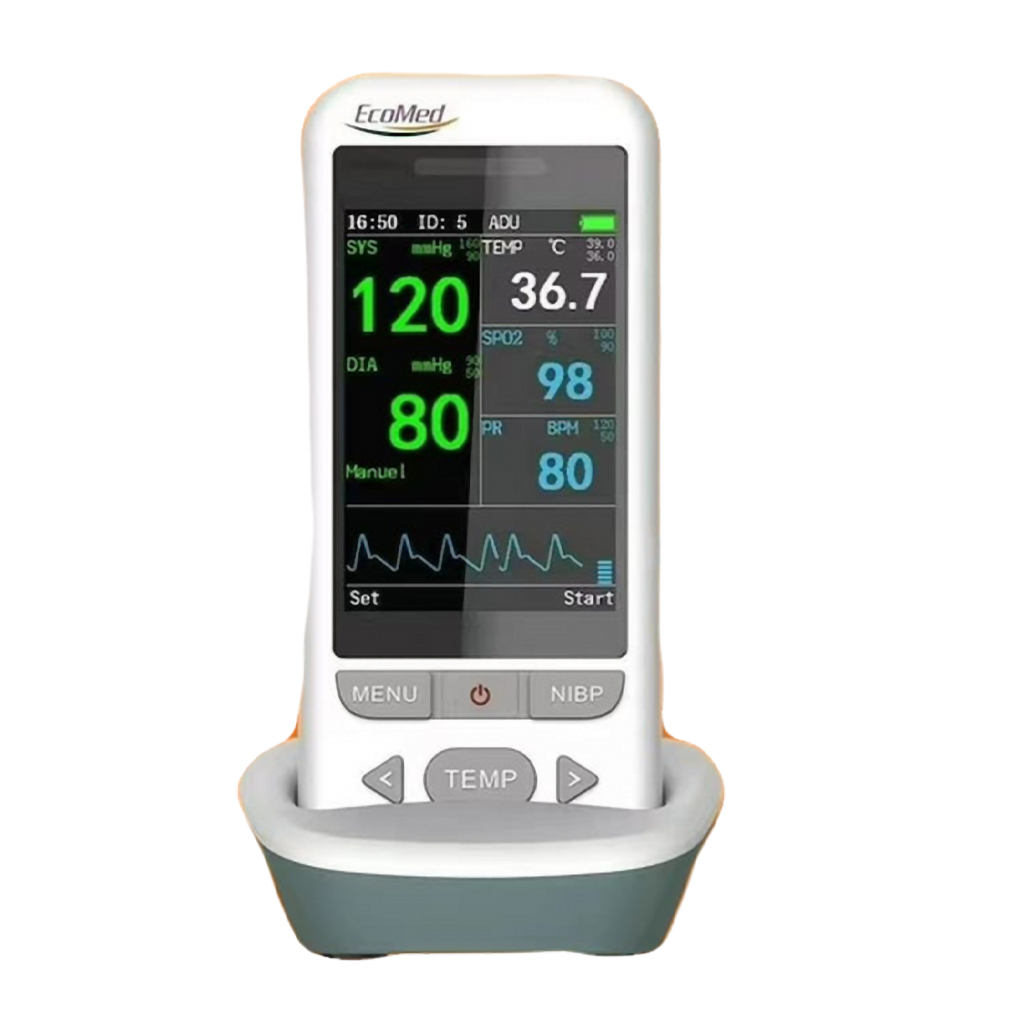

EcoMed Handheld Vital Sign Monitor (EPM 10) – Patient Monitoring & Life Support | Sysmark Bangladesh
The EcoMed EPM-10 is a compact handheld vital sign monitor designed for convenient point-of-care patient assessment. It supports NIBP, SpO₂, Pulse Rate, and Temperature monitoring in a portable handphone-style design with a 3.5-inch color TFT LCD screen. The system also offers Bluetooth data output, audible and visual alarms, internal battery operation, and optional EtCO₂ monitoring and charging base.
Key Features
• Four essential vital-sign parameters in one portable device: NIBP, SpO₂, Pulse Rate and Temperature.
• Compact handheld design for convenient use during patient rounds and point-of-care assessment.
• Rapid infrared temperature measurement supports quick patient screening.
• Automatic NIBP interval monitoring provides multiple programmable measurement intervals.
• Audible and visual alarm system helps healthcare professionals identify parameter deviations.
• Patient data storage and trend recording support follow-up and review of measurements.
• Bluetooth connectivity enables measurement data output.
• Color TFT display provides clear visualization of monitoring information and SpO₂ waveform.
• Rechargeable lithium battery supports portable operation without continuous connection to mains power.
Specifications
• Product Type: Handheld Vital Sign Monitor
• Primary Parameters: NIBP, SpO₂, Pulse Rate and Temperature
• Display: 3.5-inch Color TFT LCD
• Data Storage: Up to 100 user IDs
• Measurement Storage: Up to 1,000 groups of measurement data with trend records for each user ID
• Data Transfer: Bluetooth
• Built-in Battery: 3.7 V / 2000 mAh Lithium battery
• Battery Operating Time: Up to 6 hours
• Charger Input: 100–240 VAC
• Charger Output: DC 5 V / 2 A
• Charging Connection: Micro USB
• Bluetooth Supported
• Product Dimensions: 67 × 155 × 30 mm
• Net Weight: 500 g
• Packing Dimensions: 200 × 130 × 84 mm
• Gross Weight: 1,200 g
NIBP
• Measurement Method Oscillometric
• Measurement Modes Manual and Auto
• Auto Measurement Intervals 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240 and 480 minutes
• Alarm Type SYS and DIA
• Pressure Resolution 1 mmHg
• Maximum Mean Error 5 mmHg
• Maximum Standard Deviation 8 mmHg
SpO₂
• Measurement Range: 0–100%
• Resolution: 1%
• Accuracy: ±2% within the 70–100% range
• Display Information: SpO₂ value, waveform and pulse
• Alarm System: Audio-visual alarm
Pulse Rate
• Measurement Range: 0–254 bpm
• Resolution: 1 bpm
• Accuracy: ±1 bpm
• Sensitivity: >200 µVp-p
Temperature
• Measurement Method: Infrared scanning
• Measurement & Alarm Range: 0–50°C
• Resolution: 0.1°C
• Accuracy: 0.1°C
• Actualization Interval: Approximately 1 second
• Average Time Constant: ≤2 seconds
• Rapid Measurement: Temperature measurement within approximately 2 seconds
Use Cases
• Outpatient departments
• Emergency and triage areas
• Hospital wards
• Nursing rounds
• Clinics
• Ambulance and patient transport environments
• Home healthcare
• General patient screening
