Ambu ECG Electrode-Single use (Blue Sensor T) – Patient Monitoring & Life Support | Sysmark Bangladesh

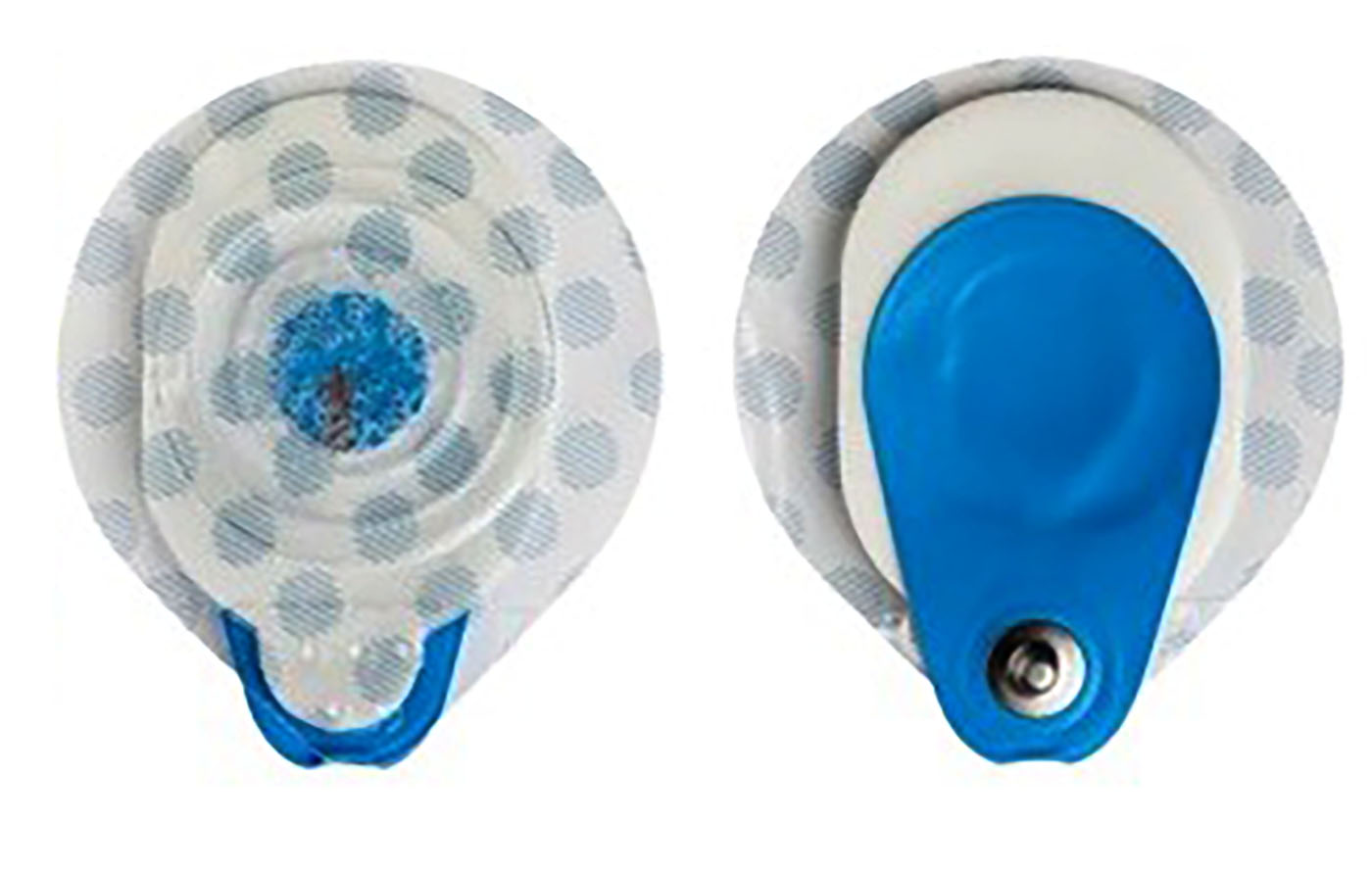

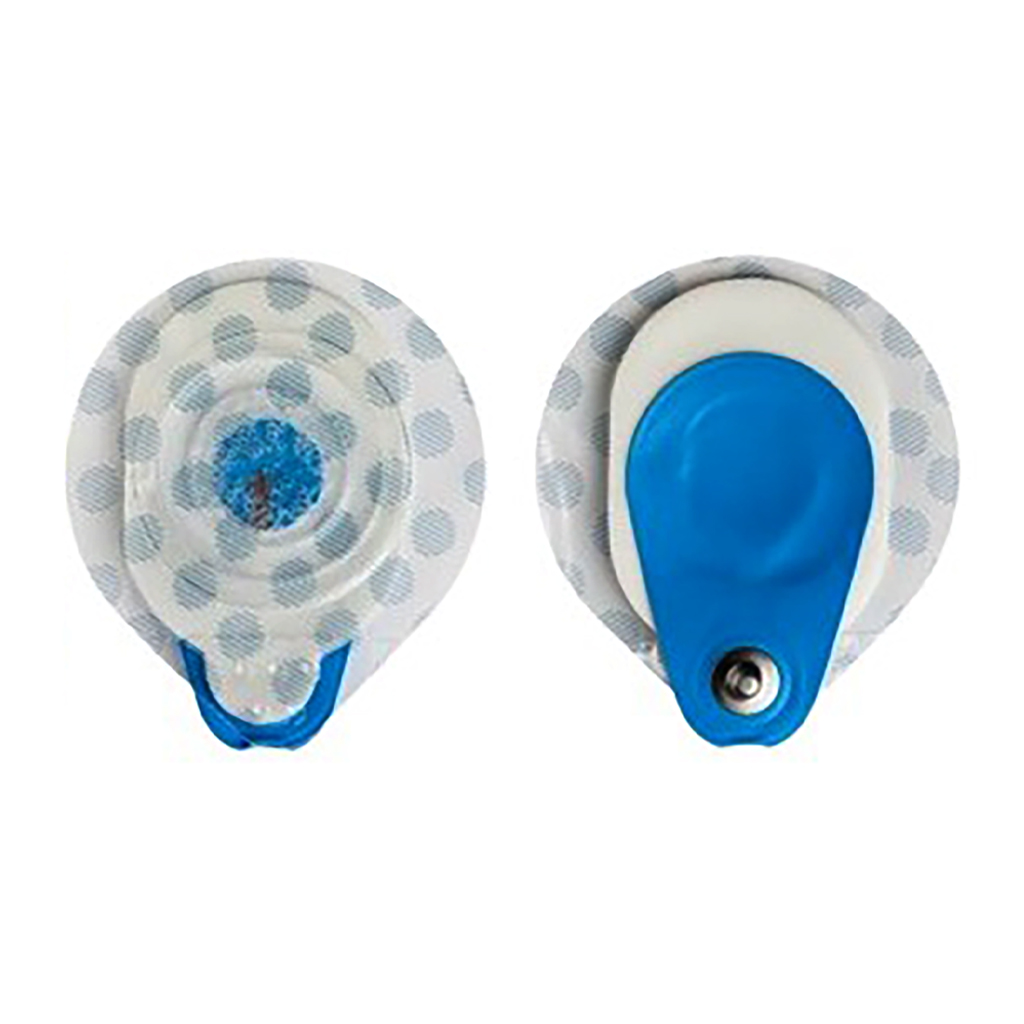

The Ambu Blue Sensor T is a single-use ECG electrode designed for clinical ECG monitoring and diagnostic applications. The Blue Sensor family uses skin-contact technology and conductive gel to support reliable signal acquisition and electrode adhesion.
Key Features
• Single-use design to support hygienic clinical use.
• Designed for ECG/ETT signal acquisition.
• Part of Ambu’s Blue Sensor ECG/ETT electrode portfolio.
• Suitable for routine ECG/ETT monitoring and recording applications.
• Intended to simplify electrode replacement between patients.
Specifications
• Usage: Single patient / single use
• Electrode size (length x width): 57 x 35 mm
• Skin contact size (diameter): 48 x 35 mm
• Adhesive area: 1163 mm2
• Sensor material: Silver/silver chloride (Ag/AgCl)
• Gel system: Wet gel
• Gel area/measuring area: 254 mm2
• AC impedance – typical: 450 Ω
• DC offset voltage – typical: 2 mV
• Defibrillation overload recovery – typical: 10.08 mV
• Rate of change of polarization potential – typical: -0.17 mV/s
• Combined offset instability and internal noise: 0.8 μV
• Bias current tolerance (over 8 hours): 3.2 mV
• Bio-compatible: Yes
• Sponge: Polyurethane foam (PUR)
• Backing material: Polyvinyl chloride foam (PVC)
• Skin adhesive: Acrylate
• Upper part: Polyvinyl chloride film (PVC)
• A connector fitting: Polypropylene (PP)
• S connector (stud): Stainless steel
• Release liner: Polyethylene film (PE)/Amorphous Polyethylene Terephthalate (APET)
• Shelf life (Opened pouches): 1 month
• Shelf life (Unopened pouches): 24 months
Use Cases
• Resting ECG
• Patient monitoring
• Cardiology departments
• Emergency departments
• ICU and CCU
• Hospital wards
• Diagnostic centres
• ETT
