Mindray Anesthesia (A5) – Patient Monitoring & Life Support | Sysmark Bangladesh

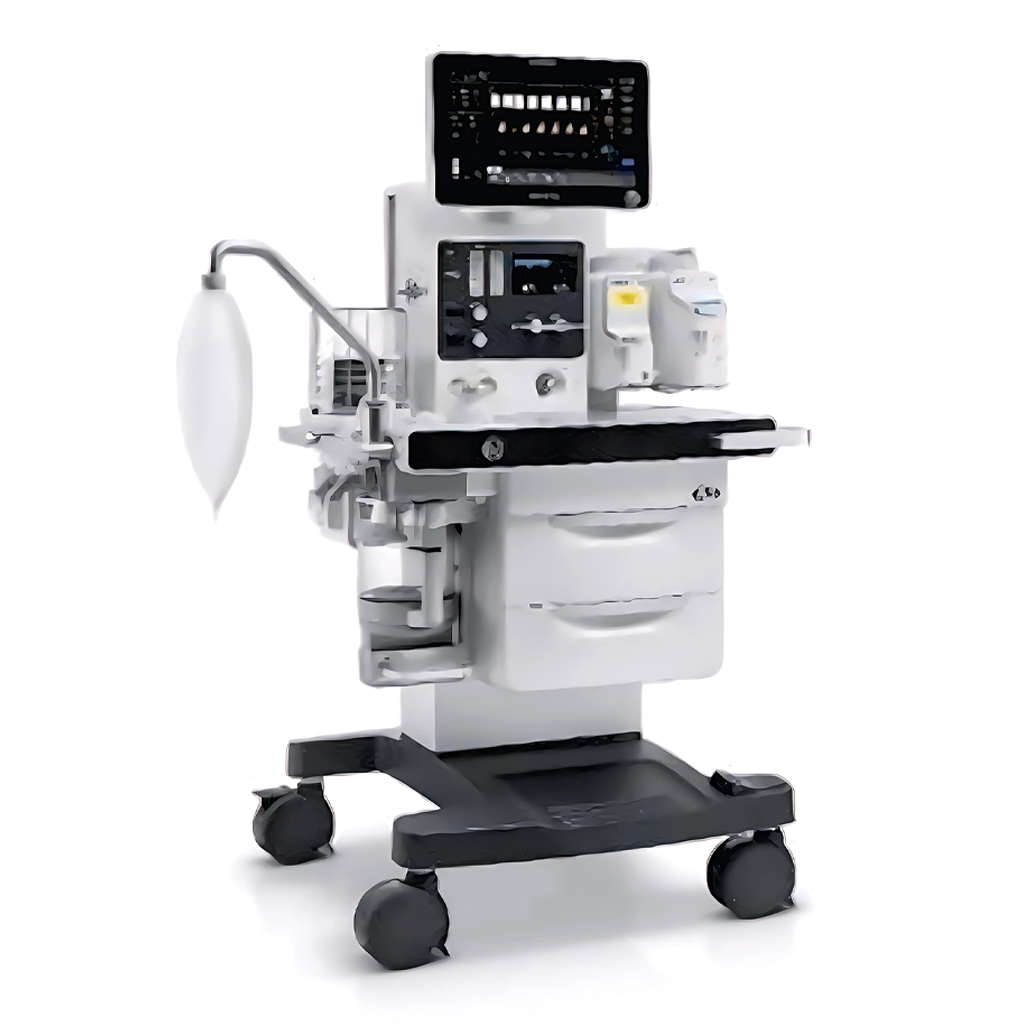

The Mindray A5 is an advanced anesthesia system designed to provide comprehensive anesthesia delivery and ventilation support for patients ranging from neonates to adults. It combines diversified ventilation, an integrated breathing system, plug-and-play monitoring, and optional tools for lung recruitment and low-flow anesthesia management.
Key Features
• Diversified ventilation supports different clinical anesthesia requirements.
• Integrated breathing system helps streamline the anesthesia workstation.
• Optional HFNC can support oxygenation during selected challenging airway situations.
• Optional HFJV supports applicable shared-airway and difficult-airway procedures.
• Recruitment tools support perioperative lung-protection strategies.
• Optional Optimizer™ and anesthetic-agent measurement support fresh-gas and agent-management workflows.
• Connectivity supports visibility of patient status across operating-room environments.
Specifications
• Display: 15.6-inch capacitive touchscreen
• Patient Population: Adult, pediatric, and neonatal
• Ventilation Support: VCV, PCV, PCV-VG, SIMV-VC, SIMV-PC, CPAP/PS, APRV (Optional)
• Tidal Volume Range: 5 mL to 1500 mL
• Battery: 90 minutes
• Recruitment Maneuvers: Stepwise PEEP and sustained inflation
• Module Rack : Plug-and-play monitoring modules
• Upgreadable with CO₂ Module, AG Module, BIS module, NMT Module
• Low-Flow Assistance: Optimizer™ toolkit available as an optional feature
• Auxiliary O2 Flowmeter Range: 0 ~ 15 L/min
• Advanced Respiratory Support: HFNC and HFJV options, depending on configuration
• US-FDA & EU- CE Certified
Use Cases
• General anesthesia
• Pediatric and neonatal anesthesia
• Difficult-airway cases
• Bariatric surgery
• Shared-airway procedures
• High-risk and critically ill patients
• Main operating theatres
