Ambu aScope 4 Broncho – Emergency, Airway & Resuscitation | Sysmark Bangladesh

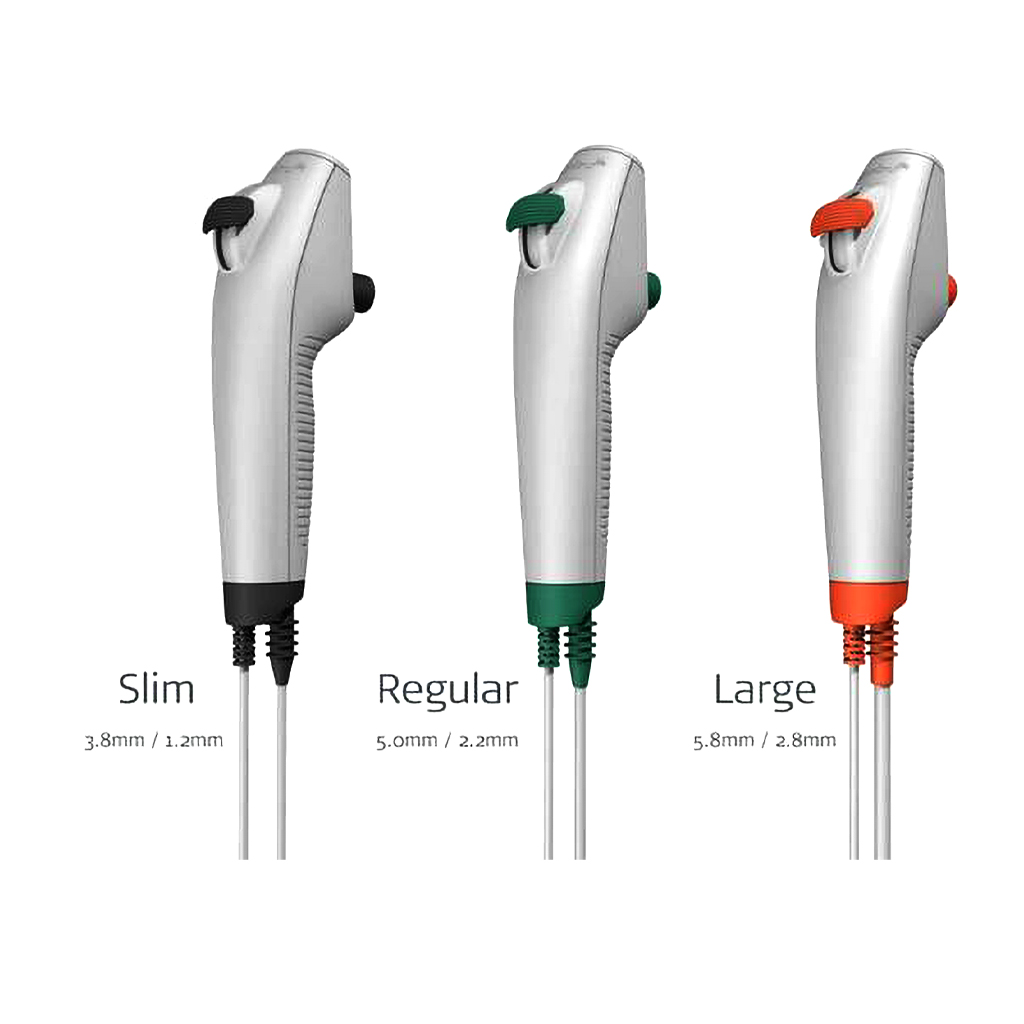

The Ambu aScope 4 Broncho is a sterile, single-use flexible bronchoscope designed for bronchoscopy and airway-management procedures throughout the hospital. It is available in Slim, Regular and Large versions and is compatible with the Ambu aView 2 Advance visualization platform.
Key Features
• Sterile, single-use bronchoscope concept.
• Three size options for different airway and procedural requirements.
• Smooth and precise distal-tip control.
• High bending capability for access to bronchial segments.
• Lightweight and ergonomic handle.
• Integrated camera and LED illumination at the distal end.
• Suction functionality.
• Compatible with Ambu aView 2 Advance.
• Compatible with the Broncho Sampler Set for selected Regular and Large configurations.
• Eliminates the need for reprocessing between patients.
Specifications
• Field of View: 85°
• Direction of View: 0°, forward viewing
• Depth of Field: 6–50 mm
• Illumination: 2 LEDs
• Sterilization Method: ETO
• Operating Temperature: 10–40°C
• Operating Humidity: 30–85% RH
• Maximum Operating Altitude: ≤2,000 m
Parameters For Slim:
– Outer Diameter / Inner Diameter: 3.8 / 1.2 mm
– Distal End Diameter: 4.2 mm
– Minimum Instrument Channel Width: 1.2 mm
– Bending Angle – Up: 180°
– Bending Angle – Down: 180°
– Working Length: 600 mm
Parameters For Regular:
– Outer Diameter / Inner Diameter: 5.0 / 2.2 mm
– Distal End Diameter: 5.4 mm
– Minimum Instrument Channel Width: 2.0 mm
– Bending Angle – Up: 180°
– Bending Angle – Down: 180°
– Working Length: 600 mm
Parameters For Large:
– Outer Diameter / Inner Diameter: 5.8 / 2.8 mm
– Distal End Diameter: 6.2 mm
– Minimum Instrument Channel Width: 2.6 mm
– Bending Angle – Up: 180°
– Bending Angle – Down: 160°
– Working Length: 600 mm
Use Cases
• Routine bronchoscopy
• ICU bronchoscopy
• Airway management
• Intubation support
• Thoracic anaesthesia
• Bronchoalveolar lavage and bronchial wash, with compatible sampler configurations
• Bedside respiratory procedures
