Ambu Oval Plus Silicone Resuscitator – Emergency, Airway & Resuscitation | Sysmark Bangladesh

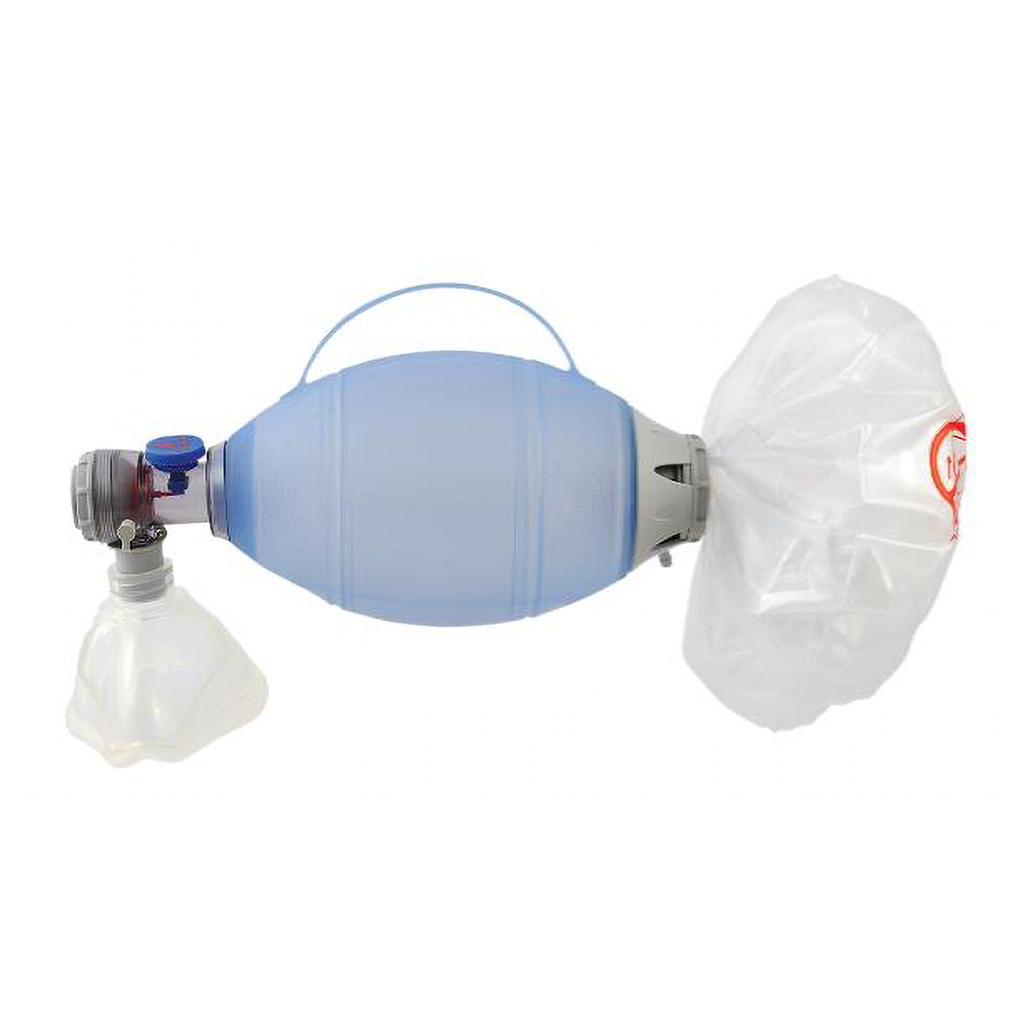

The Ambu Oval Plus Silicone Resuscitator is a reusable manual resuscitator family designed for ventilation and resuscitation of neonatal, paediatric and adult patients. It uses a silicone self-inflating bag and can be repeatedly reprocessed according to the manufacturer’s instructions.
Key Features
• Reusable silicone manual resuscitator.
• Single-shutter valve system for reliable operation.
• Textured bag surface to improve grip.
• Integrated handle on adult and paediatric versions.
• Transparent patient valve for visual observation.
• Pressure-limiting valve system.
• Swivel connection between the patient valve and mask.
• Compatible with Ambu PEEP valves and disposable pressure manometers.
Specifications
• Patient Connector: 22 mm male / 15 mm female
• Expiratory Connector: 30 mm male
• Manometer Port: Ø 4.2 ± 0.1 mm
• Operating Temperature: -18°C to +50°C
• Storage Temperature: -40°C to +60°C
• Autoclaving Temperature: Up to 134°C
• Reprocessing Capability: Up to 30 cycles
Parameters For Neonate:
– Delivered Volume – One Hand: 150 ml
– Approx. Resuscitator Volume: 228 ml
– Approx. Dimensions: 200 × 75 mm
– Weight Without Reservoir/Mask: 128 g
– Pressure-Limiting Valve: 40 cmH₂O
– Oxygen Reservoir: 1,500 ml bag / 100 ml tube options
Parameters For Paediatric:
– Delivered Volume – One Hand: 450 ml
– Approx. Resuscitator Volume: 624 ml
– Approx. Dimensions: 240 × 100 mm
– Weight Without Reservoir/Mask: 205 g
– Pressure-Limiting Valve: 40 cmH₂O
– Oxygen Reservoir: 1,500 ml bag
Parameters For Adult:
– Delivered Volume – One Hand: 600 ml
– Delivered Volume – Two Hands: 1,000 ml
– Approx. Resuscitator Volume: 1,486 ml
– Approx. Dimensions: 270 × 130 mm
– Weight Without Reservoir/Mask: 338 g
– Pressure-Limiting Valve: 40 cmH₂O
– Oxygen Reservoir: 1,500 ml bag
Use Cases
• Manual ventilation
• Emergency resuscitation
• Operating theatres
• ICU and CCU
• Ambulance and emergency-response applications
• Neonatal and paediatric care, with appropriate model selection
