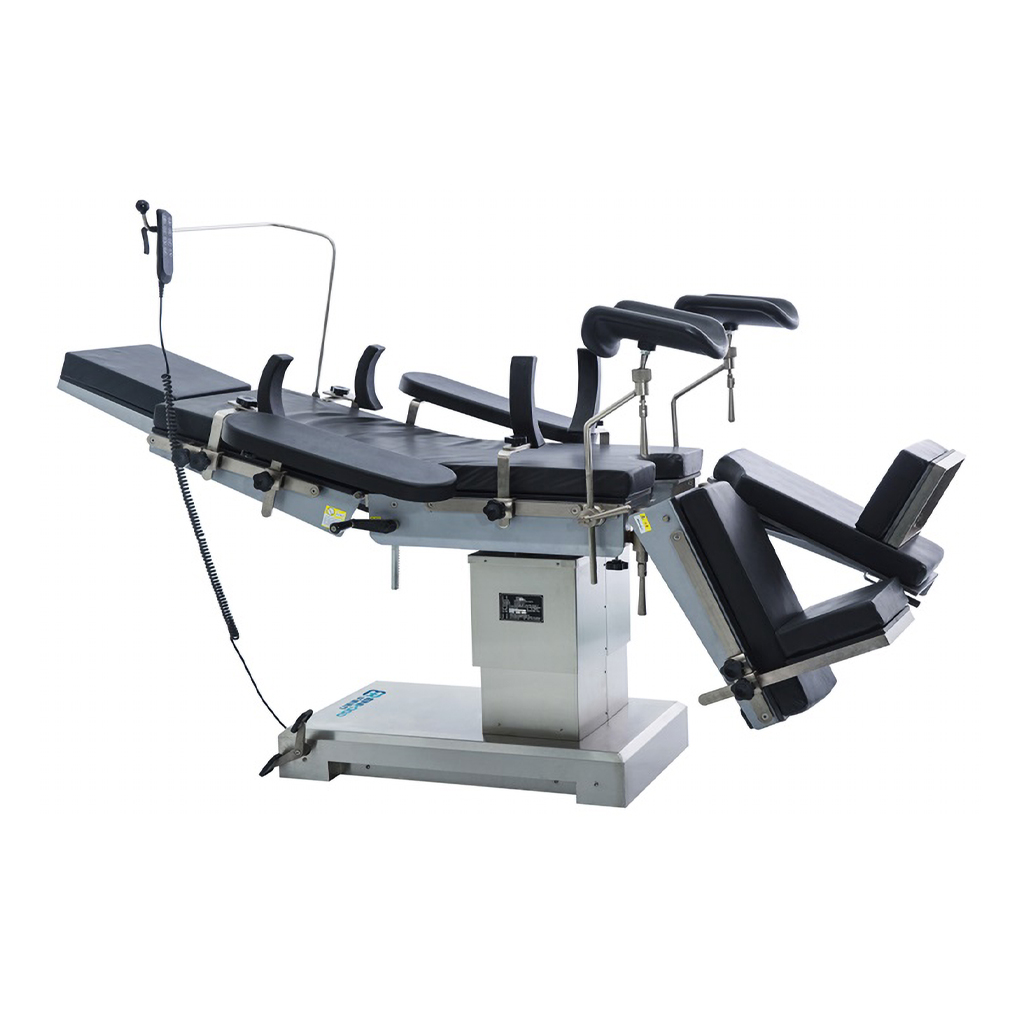

Weyuan Med OT Table (WYD02A) – Operating Theatre Equipment | Sysmark Bangladesh
The Weyuan Medical WYD02A, is a multi-purpose electrical operating table designed for general and specialty surgical procedures. It provides powered positioning with an optional radiolucent tabletop configuration for imaging applications.
Key Features
• Powered adjustment supports flexible patient positioning.
• Remote hand control allows convenient operation by theatre staff.
• Built-in kidney bridge supports selected surgical positioning requirements.
• Detachable and positionable leg section improves procedural flexibility.
• Stainless-steel base cover supports durability and cleaning.
• Full-length radiolucent tabletop is available in applicable configurations.
• Compatible with standard operating-table accessories.
Specifications
• Table Length: 2,000 mm
• Table Width: 500 mm
• Minimum Height: 550 mm
• Elevation Range: ≥250 mm
• Trendelenburg: ≥25°
• Reverse Trendelenburg: ≥25°
• Lateral Tilt: ≥20° left / ≥20° right
• Head Section: ≥45° up / ≥90° down
• Back Section: ≥45° up / ≥15° down
• Kidney Bridge Elevation: ≥100 mm
• Leg Section Downward Movement: ≥90°
• Horizontal Leg Positioning: ≥90°
• Mattress Thickness: 60 mm
• Maximum Load Capacity: 200 kg
• Backup Battery: Yes
• Power Supply: 110/220 VAC, 50/60 Hz
Use Cases
• General surgery
• Orthopedics
• Neurosurgery
• Gynecology
• Urology
• Cardiac surgery
• Renal surgery
• Plastic surgery
• Procedures requiring compatible X-ray imaging
