BenQ OT Table (NOVEL NOT-5600 Series) – Operating Theatre Equipment | Sysmark Bangladesh

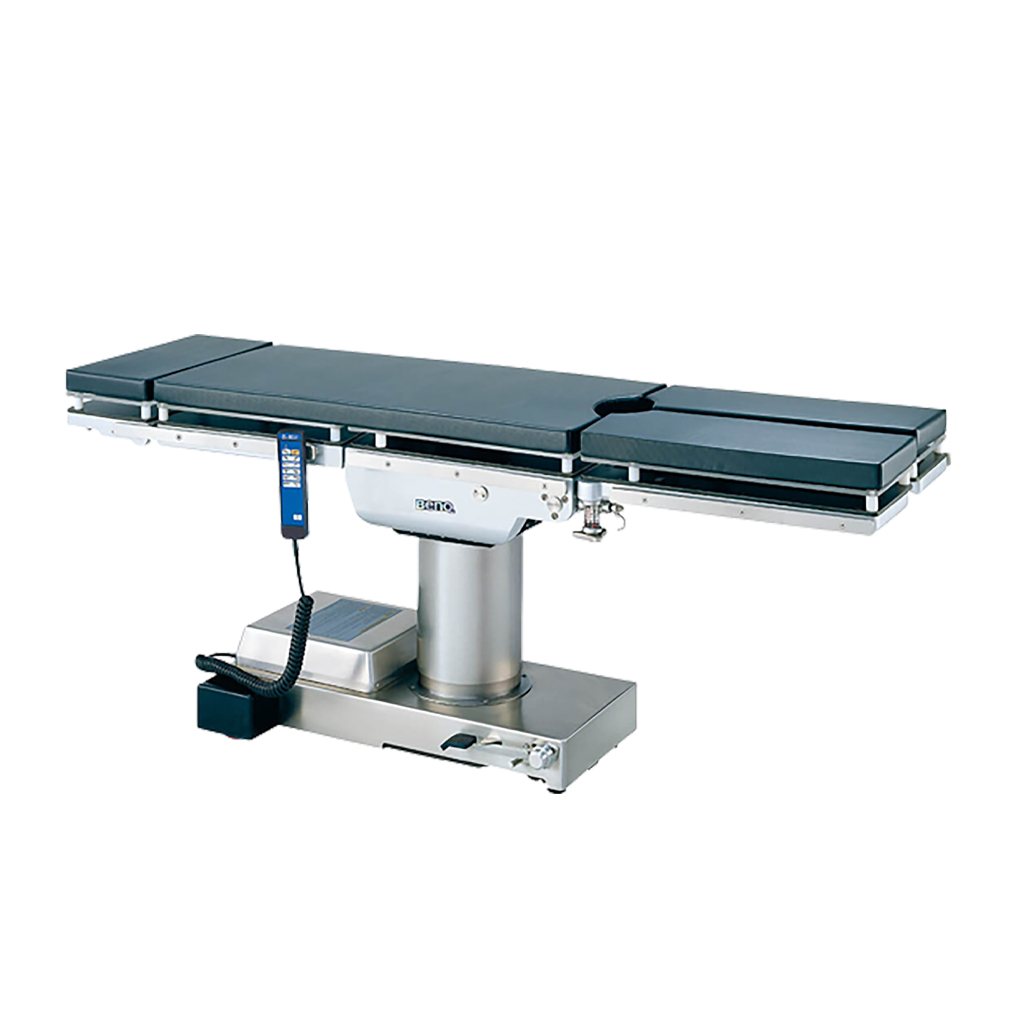

The NOVEL NOT-5600 Series is a multifunctional electric operating table designed to provide flexible patient positioning while improving access for the surgical team and compatible equipment such as C-arms. The series is designed to support reliable operation, patient comfort, mobility, maintenance convenience, and long-term use in modern operating theatres.
Key Features
• Multiple Control Options: The table can be operated using compatible hand, foot, or auxiliary controls, depending on the supplied configuration.
• Flexible Patient Positioning: Supports longitudinal and lateral tabletop positioning for different surgical requirements.
• Large Castors: Designed to facilitate movement and positioning within the operating theatre.
• Optional X-Ray Configuration: Compatible configurations can support insertion of standard X-ray cassettes from the head, body, or foot side of the tabletop.
• Built-in Kidney Bridge: Available on applicable configurations, including the manufacturer-specified K model.
• Orthopedic Traction Compatibility: Compatible configurations can accommodate an orthopedic extension or traction device for selected orthopedic and trauma procedures.
• Shoulder Surgery Support: Can be configured with a dedicated shoulder surgery attachment for positioning and surgical access.
Specifications
Standard Parameters
• Tabletop Size: 1,950 × 500 mm
• Tabletop Height Range: 710–1,015 mm
• Maximum Patient Weight Capacity: 180 kg
• Trendelenburg: 26°
• Reverse Trendelenburg: 26°
• Lateral Tilt: 21° left / 21° right
• Head Section Adjustment: +60° / -90°
• Back Section Adjustment: +80° / -40°
• Leg Section Adjustment: +15° / -90°
Special Parameters
• Tabletop Longitudinal Slide / Tabletop Rotation: 300 mm
• Kidney Bridge Elevation: 121 mm
Use Cases
• General surgery
• Orthopedic surgery
• Trauma surgery
• Lower-limb procedures
• Shoulder arthroscopy
• Selected upper-limb procedures
• Gynecology and urology
• Procedures requiring compatible C-arm access
• Procedures requiring optional X-ray imaging
• Other surgical procedures requiring flexible patient positioning
