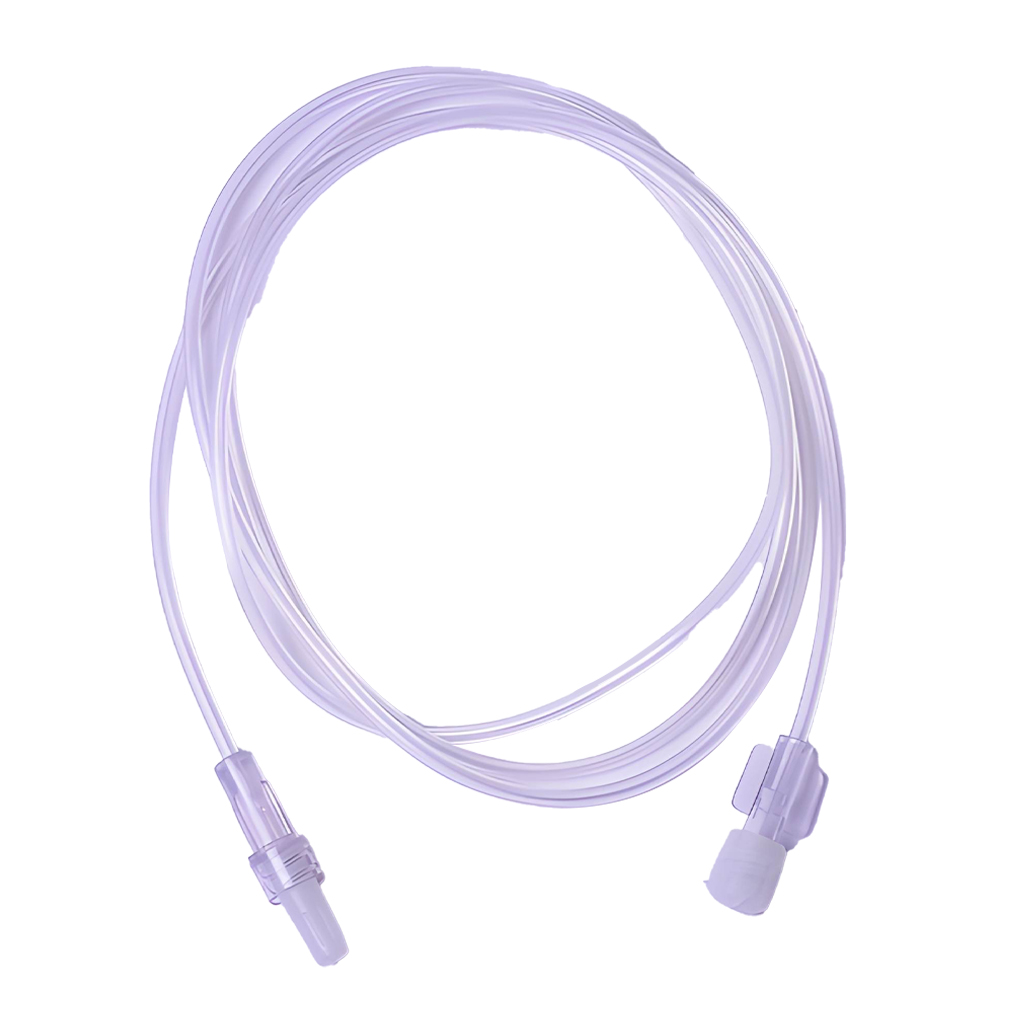

The IT-35A Extension Set High Pressure / Pressure Monitoring Line (PMO Line) is designed for pressure-monitoring applications and incorporates male and female Luer Lock adaptors with caps and pressure-oriented PVC tubing. Angiplast offers multiple lengths, including 10 cm and 200 cm.

Key Features:
• Designed specifically for high-pressure/pressure-monitoring applications.
• Pressure-oriented tubing configuration.
• Luer Lock connections.
• Multiple length options.
• Individually sterile packaged.
• Leak-resistant extension-line construction.

Specifications:
• Product Type: High-Pressure Extension / Pressure Monitoring Line (PMO Line)
• Model: IT-35A
• Tubing: PVC
• Tubing Size: 1.4 × 2.8 mm
• Available Lengths: 10, 25, 50, 100, 150, 200 cm
• Requested Configurations: 10 / 20* / 200 cm
• Connectors: 1 Male + 1 Female Luer Lock Adaptor with Cap
• Priming Volume – 10 cm: Approx. 0.16 ml
• Priming Volume – 25 cm: Approx. 0.39 ml
• Priming Volume – 50 cm: Approx. 0.78 ml
• Priming Volume – 100 cm: Approx. 1.60 ml
• Priming Volume – 150 cm: Approx. 2.40 ml
• Priming Volume – 200 cm: Approx. 3.10 ml
• Packaging: Paper-Poly Pack
• Sterility: Sterile

Use Cases:
• Pressure monitoring
• Patient monitoring systems
• ICU monitoring
• Critical-care applications
• Compatible invasive pressure-monitoring lines
